Tig Cooler, 16L Water Capacity, Tig Welder Torch Water Cooling System, 7L-12L/min Rated Water Flow with Flow Alarm

Applications: For use with water-cooled TIG torches For use with water-cooled MIG guns Specification: Protection Level: IP21 Color: Green Input Voltage: 110V Cooling power: 1.5KW(1L/min) Pump power: 370W Rated water flow: 7L-12L/min Water capacity: 16L Max pressure/head: 0.4Mpa/60Hz Rated lift: 32M Operating temperature: -20℃— 60℃ Package Size: 24x17x16 inches Gross Weight: 44 lbs Feature: Efficient cooling of water cooled TIG torch Compact design Large fan Stainless steel pump Copper radiator Adaptable to other brands Quick couplers Rapid, leak resistant connections Precautions: 1. Please read the instructions carefully before installation and operation 2. Confirm the input voltage. (See the nameplate on the machine. Incorrect input voltage will damage the machine.) 3. If the cooler has not been put into use for long, please restart the motor and make sure the water is pumped out to prevent damages of water cooling torch 4. Make sure the tank is filled with clean water and all the connectors is fixed firmly. Always keep enough water (over safety line) in the tank, or the pump may be damaged by water shortage 5. If the motor works properly, but water draining is small or even no water, please pump in pressure air from compressor to inlet or outlet for 20 seconds 6. If the motor does not work: A. Input voltage too low, please change electric supply; B. Starting capacitor might be burnt out, please change a new one 7. IMPORTANT--The unit should be kept on at all times during welding to prevent damage to torches and cables Package Content: 1 X TIG Welder Water Cooler 1 X Water Hose 1 X Inlet Connector 1 X Outlet Connector 1 X English Manual

• This powerful cooling 110V water cooler is designed to work with TIG welders and provide the maximum cooling capacity.
• The plug can be removed or changed for applications with other brand of welders; The unit features color coded quick connectors for rapid and correct connection of the torch lines.

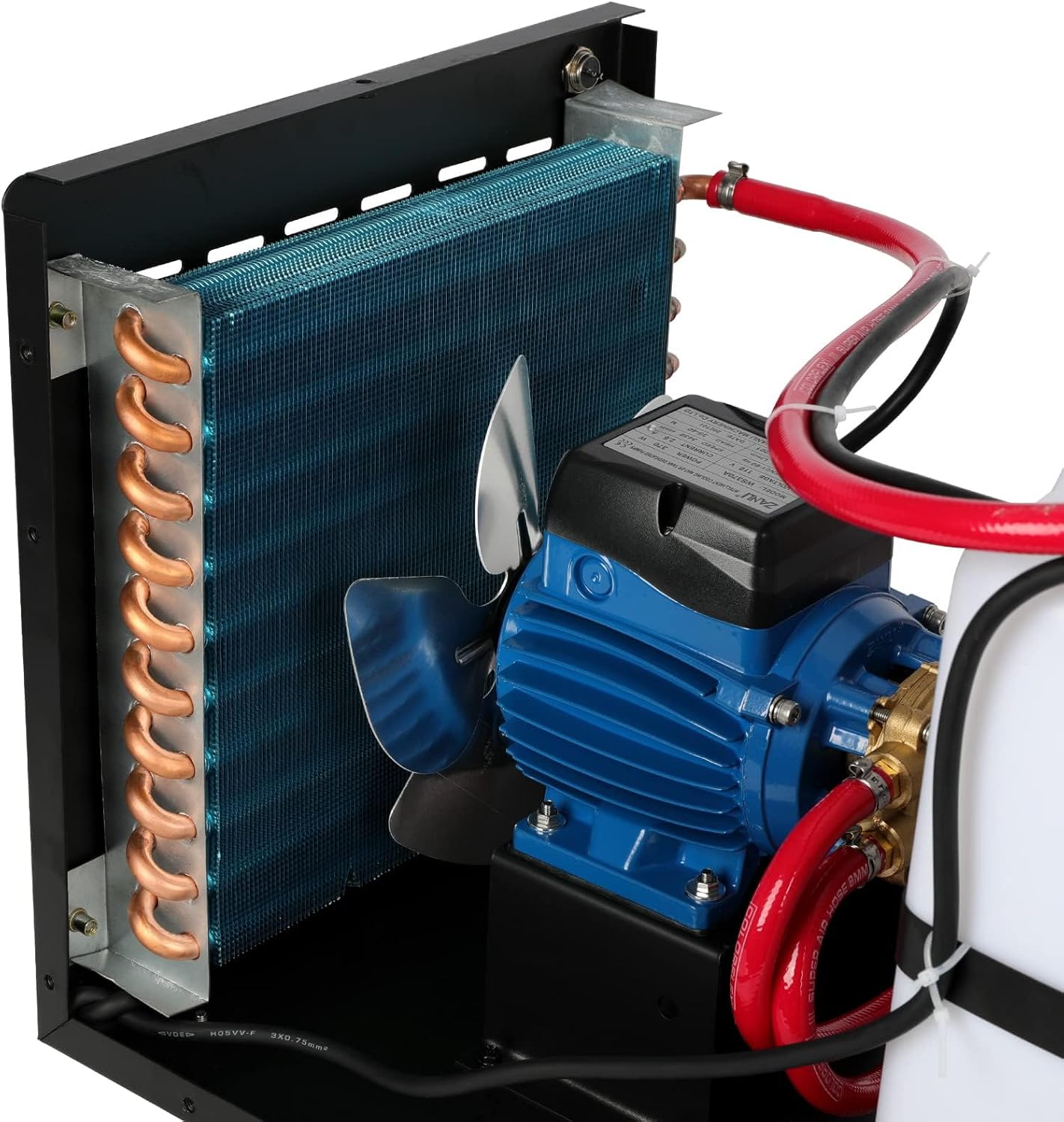

• The radiator is made from copper for maximum cooling capability; Its pump is made from stainless steel with a bronze impeller for maximum wearability.

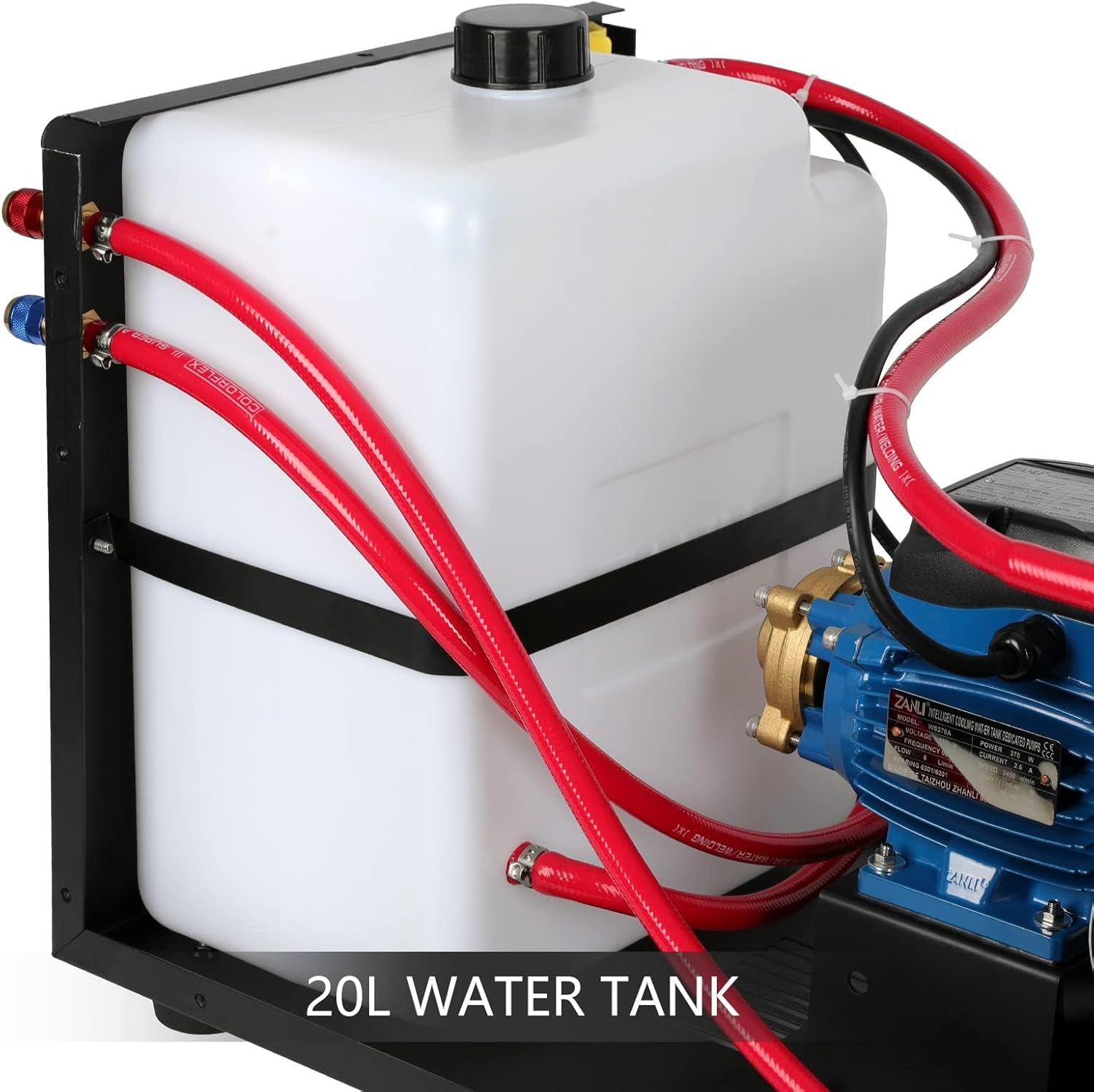

• Industrial motor is sealed for best protection from the elements; A generous reservoir holds 16L of coolant for maximum circulation capacity.
• Use only distilled water or antifreeze specifically designed for use with TIG/MIG torch coolers; Do not use automotive anti freeze fluid.
