Stratus Extra Wide Asymmetric & Symmetric 2 in 1 Clear Floor Direct Drive Heavy Duty Columns 10,000 LBS Lifting Capacity Single Point Electric Safety Lock Release Car Lift SAE-C10X
Product details
| Management number | 211810745 | Release Date | 2026/04/04 | List Price | $2,086.00 | Model Number | 211810745 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Meet the Stratus 2-In-1 Clear Floor Car Lift SAE-C10X! This impressive 2 Post Clear Floor Car Hoist combines both asymmetric and symmetric lifting capabilities. It's not just versatile - with 10000 lbs capacity, it's also incredibly strong. Its direct drive is powered by a single point manual release, giving you optimal control over your lift. Plus, its extra-wide design means it can handle all shapes and sizes of vehicles. Designed with a clear floor, this extra wide 2 post lift gives you an unobstructed workspace underneath the car. It's the perfect addition to any garage or workshop space! *MUST BE DELIVERED TO COMMERCIAL ADDRESS OR HAVE WAY TO OFFLOAD (FORKLIFT)*
- Symmetric & Asymmetric 2-in-1 design installation
- Product Features Extra wide drive through: -112”- Symmetrical -107 11/16"- Asymmetrical
- Heavy duty 14-folds columns Clear floor Electric safety lock release Direct drive 2 top limiter switches Anti-surge valves Automatic arms restraints Proofed by dynamic test with 115% of rated capacity and static test with 150% rated capacity Powder coating finish: Granite Gray (RAL 7026) + Rein orange (RAL 2004)

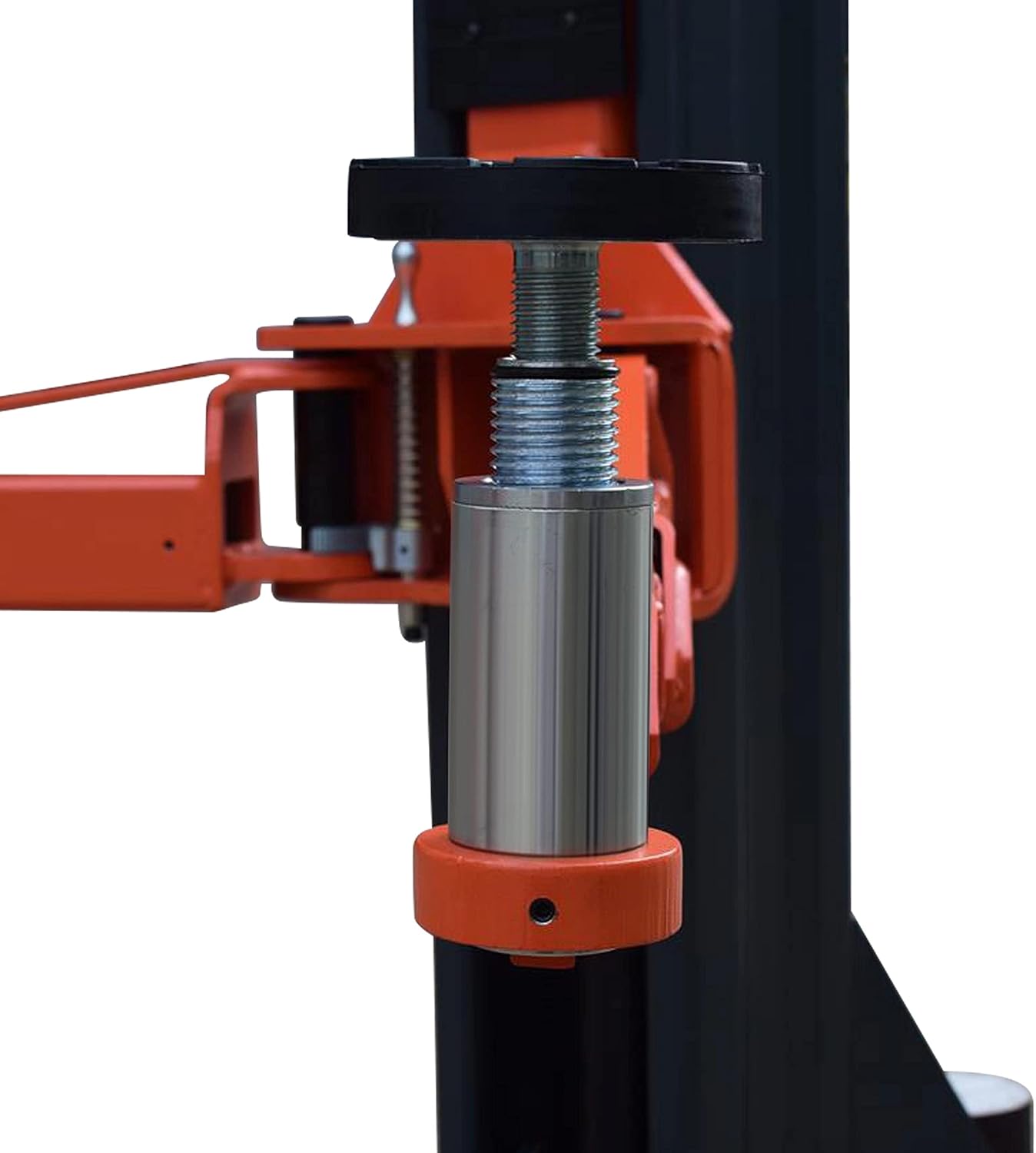

- Standard Accessories (Included) 4pcs- screw-up Rubber Pads 4 x 4" (100MM) Truck Adapters 4 x 3-stage arms
- Capacity:10,000 LBS Overall Height:153 9/16” (3900 MM) Overall Width:20 1/2” (520 MM) Overall Length:150 13/16” (3830 MM) Max Lifting Height with Adaptors:83 1/16” (2110 MM) Min Lifting Height with Adaptors:10 7/16” (265 MM) Max Lifting without Adaptors:76 3/4” (1950 MM) Min Lifting without Adaptors:3 15/16” (100 MM) Lifting Time:~50SEC Width between columns:124” (3150 MM) Drive Clearance:112 3/16” (2850 MM) Front Arm Reach Max:68 1/2” (1740 MM) Front Arm Reach Min:35 7/16” (900 MM) Rear Arm Reach Max:47 9/16” (1208 MM) Rear Arm Reach Min:23 5/8” (600 MM) Motor:3 HP, 220V, 60 HZ, 1ph Oil:AW32 or AW46 Breaker:30A Weight:1,719 LBS Dimension:114” L * 29” W * 35” H
| Brand Name | STRATUS |
|---|---|
| Item Weight | 1715 Pounds |
| Material Type | Carbon Steel |
| Auto Part Position | Center |
| Included Components | Installation Hardware |
| Maximum Lifting Height | 2 Inches |
