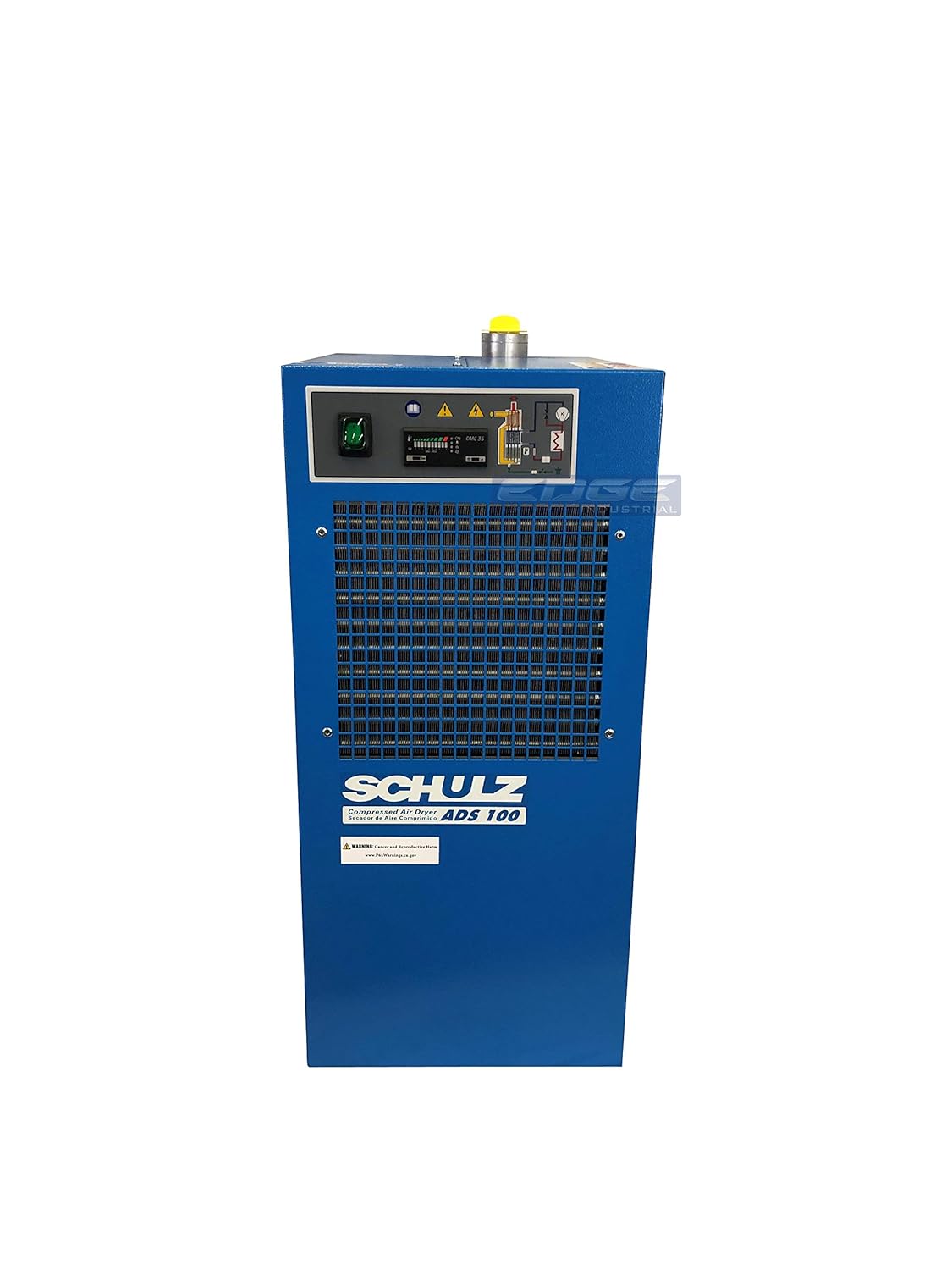

SCHULZ REFRIGERATED AIR DRYER FOR AIR COMPRESSOR, COMPRESSED AIR SYSTEMS, 100 CFM, GOOD FOR 20HP & 25HP COMPRESSORS (WITH REGULATOR PRE-FILTER)

COMPRESSED AIR CONTAINS NATURALLY OCCURRING MOISTURE, WHICH CAN NEGATIVELY AFFECT COMPRESSED AIR APPLICATIONS THAT REQUIRE MOISTURE FREE AIR. DRYERS ARE A COMMON SOLUTION FOR REMOVING SUCH MOISTURE. ONE OF THE MOST POPULAR OPTIONS ARE REFRIGERATED AIR DRYERS, DUE TO ITS ABILITY TO REACH AN ACCEPTABLE DEW POINT IN. NON-CYCLING REFRIGERATED DRYERS, THE REFRIGERANT ACTUALLY CIRCULATES CONTINUOUSLY THROUGHOUT THE SYSTEM. BECAUSE BOTH THE FLOW OF COMPRESSED AIR AND AMBIENT TEMPERATURES VARY, A HOT GAS BYPASS VALVE IS USED TO REGULATE THE TEMPERATURE OF THE REFRIGERANT WHILE PREVENTING FREEZING WITHIN THE SYSTEM. IT IS VITAL THAT LIQUID WATER AND OIL ARE REMOVED FROM YOUR COMPRESSED AIR LINES BEFORE ENTERING ANY REFRIGERATED AIR DRYER. LIQUID WATER AND/OR OIL FROM YOUR COMPRESSOR CAN DAMAGE THE INTERIOR COMPONENTS OF THE DRYER RESULTING IN DRYER NON-PERFORMANCE OR FAILURE. WHEN YOU SELECT THE " WITH REGULATOR PRE-FILTER OPTION" WE PROVIDE YOU WITH A STAGE 1 WATER SEPARATOR WITH 3 MICRON FILTER ELEMENT AND INTERNAL FLOAT DRAIN BY ARROW PNEUMATICS. PART NUMER F329-10WF3 + R3910 ARROW PNEUMATICS PRESSURE REGULATOR. ADS DRYER INFO: 1-PHASE 115V, 14 AWG WIRE REQUIRED, DEW POINT: 41 DEGREES FAHRENHEIT AT 100 PSI, REFRIGERANT FLUID TYPE: R134a, DRYER IS 86 LBS. ITEMS INCLUDED (1)ADS-100 DRYER, (1) F329-10FW3 FILTER, (1) R3910H REGULATOR, (1) 1.25" CLOSE NIPPLE, (1) 0-300 GAUGE, (2) WALL BRACKETS FOR FILTER/REGULATOR, (1) PIPE TAPE

• NEW 100 CFM SCHULZ NON-CYCLING REFRIGERATED AIR DRYER WITH INDUSTRIAL RATED ARROW PNEUMATICS WATER SEPARATOR & PRESSURE REGULATOR WITH T-HANDLE
• THIS IS A COMPLETE KIT OF EVERYTHING YOU NEED FOR MOISTURE AND OIL FREE ULTRA DRY AIR (COMPRESSED AIR PIPING NOT INCLUDED)
• DRYER: 100 CFM @ 100 PSI / 1.25" FEMALE NPT INLET & OUTLET / DEW POINT: 41 DEGREES / 200 PSI MAX INLET / MAKE SURE YOUR COMPRESSOR OUTPUT IS A MAX OF 175 PSI SO TO NOT DAMAGE THE PRE-FILTER
• STAGE 1: ( ARROW PNEUMATICS F329-10WF3 ) WATER SEPARATOR FILTER RATED FULL INDUSTRIAL / 175 PSI MAX INPUT / 3 MICRON ELEMENT, INTERNAL FLOAT DRAIN (AUTO DRAIN), INCLUDES (DBK10) WALL MOUNTING BRACKET
• STAGE 2: ( ARROW PNEUMATICS R3910H) PRESSURE REGULATOR WITH T-HANDLE 10-250 PSI ADJUSTABLE, 2.5" BACK MOUNT GAUGE INCLUDED, INCLUDES (RBK39) WALL MOUNTING BRACKET
